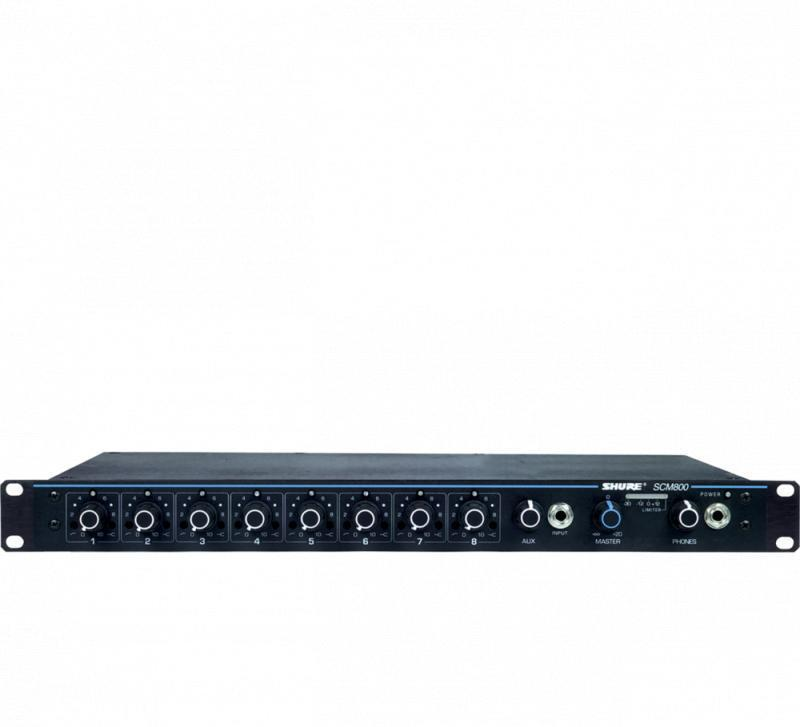

Shure SCM800

The Shure Model SCM800 is a full-featured, eight-channel microphone mixer
for sound reinforcement, general audio recording, and audio-visual systems.
Any low-impedance, balanced dynamic or condenser microphone, including a
wireless microphone system, can be used with the SCM800 mixer.

Each SCM800 accepts up to eight microphone- or line–level inputs and one
aux-level input (two input jacks feed the same channel). Up to four SCM800
mixers can be linked to provide up to 32 input channels. Each input channel
has a two-band equalizer, switchable microphone- or line-level operation,
switchable 48 V phantom power, and a 1/4-inch send/receive insert jack.

* Compatible with Shure SCM410, SCM810 and FP410 automatic microphone
mixers
* Adjustable EQ per channel: low-frequency rolloff and high-frequency
shelving
* 48 V phantom power selectable for each input
* Active balanced microphone- and line-level inputs and line level
output
* Highly RF-resistant chassis and circuitry
* LED indication of channel clipping
* Linking capability for systems up to 32 microphones
* Two Aux-level input jacks that feed one channel
* Insert jack on each channel
* Manual mixing of input channels
* Internal Modification permits 230 V operation (SCM800) or 120 V
operation (SCM800E)
* Front-panel headphones output with level control
* Peak-responding output limiter with selectable thresholds and LED
indicator
